Understanding CNC cutting speeds and feeds is essential for optimizing the performance of your CNC machining operations. These parameters directly affect tool life, material removal rate, and surface finish. Whether you’re working with CNC milled parts, CNC turned parts, or any other machined components, mastering speeds and feeds ensures efficiency, reduces wear on tools, and maximizes precision.
At CNCRUSH, with over 12 years of experience in CNC machining services, we focus on delivering high-quality CNC milled and CNC turned parts for industries such as automotive, machine building, and automation. Our expertise allows us to apply the most effective speeds and feeds for any given project, ensuring precision and efficiency at every step.
1. What Are CNC Cutting Speeds and Feeds?

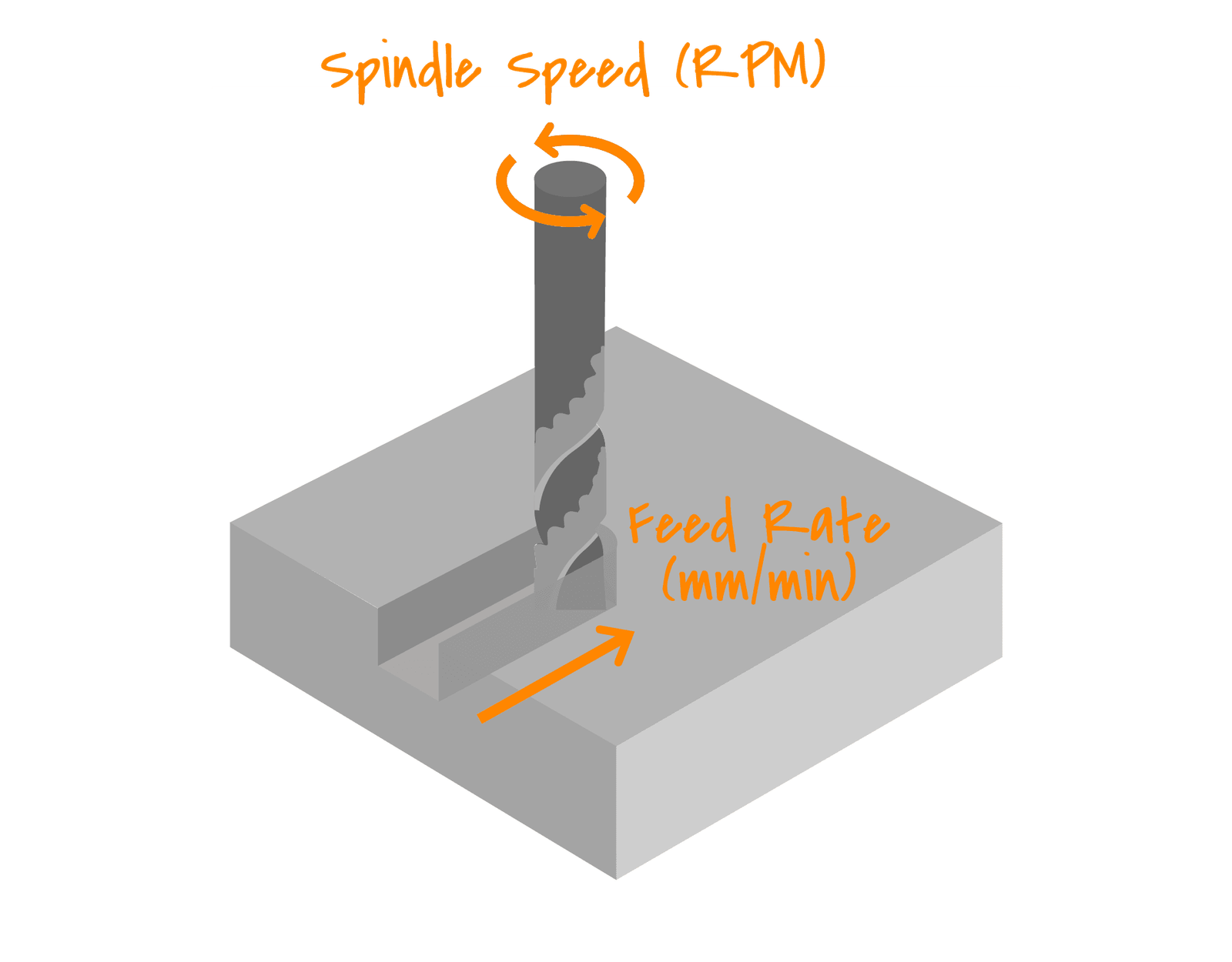

CNC Cutting Speeds refer to the speed at which the cutting tool rotates, measured in revolutions per minute (RPM), while feed rate describes the speed at which the workpiece moves through the tool. These two variables determine how much material is removed and how quickly the operation can be performed. The ideal combination of cutting speed and feed rate depends on factors such as material type, tool geometry, and desired surface finish.
Term | Definition |
---|---|
Cutting Speed | The spindle speed in RPM |
Feed Rate | Linear movement of the tool relative to the material |
2. Why Speeds and Feeds Matter in CNC Machining
Getting CNC Cutting Speeds and feeds right can be the difference between a successful operation and one plagued by broken tools, poor surface finish, or slow production times. Optimizing these parameters helps:
- Maximize tool life: Reducing wear and tear on tools by avoiding overheating or excessive vibrations.
- Improve material removal rates: Ensuring efficient cutting without sacrificing quality.
- Enhance surface finish: Preventing rough or uneven finishes that may require additional processing.
At CNCRUSH, we fine-tune speeds and feeds for all our CNC milled parts and CNC turned parts, ensuring high-quality production for automotive and automation sectors.
3. How to Calculate CNC Cutting Speeds
Calculating the optimal cutting speed involves considering factors such as the material being cut, the tool’s diameter, and the spindle speed. The formula for calculating CNC Cutting Speeds is:
V=πDN1000V = \frac{ \pi D N }{ 1000 }
Where:
- V = Cutting speed (m/min)
- D = Tool diameter (mm)
- N = Spindle speed (RPM)
Choosing the right cutting speed is crucial, especially when working with different materials like aluminum, steel, or plastics. For example, aluminum can withstand higher cutting speeds compared to steel, which requires lower speeds to prevent tool wear.
4. Chip Load and Its Role in CNC Cutting Speeds

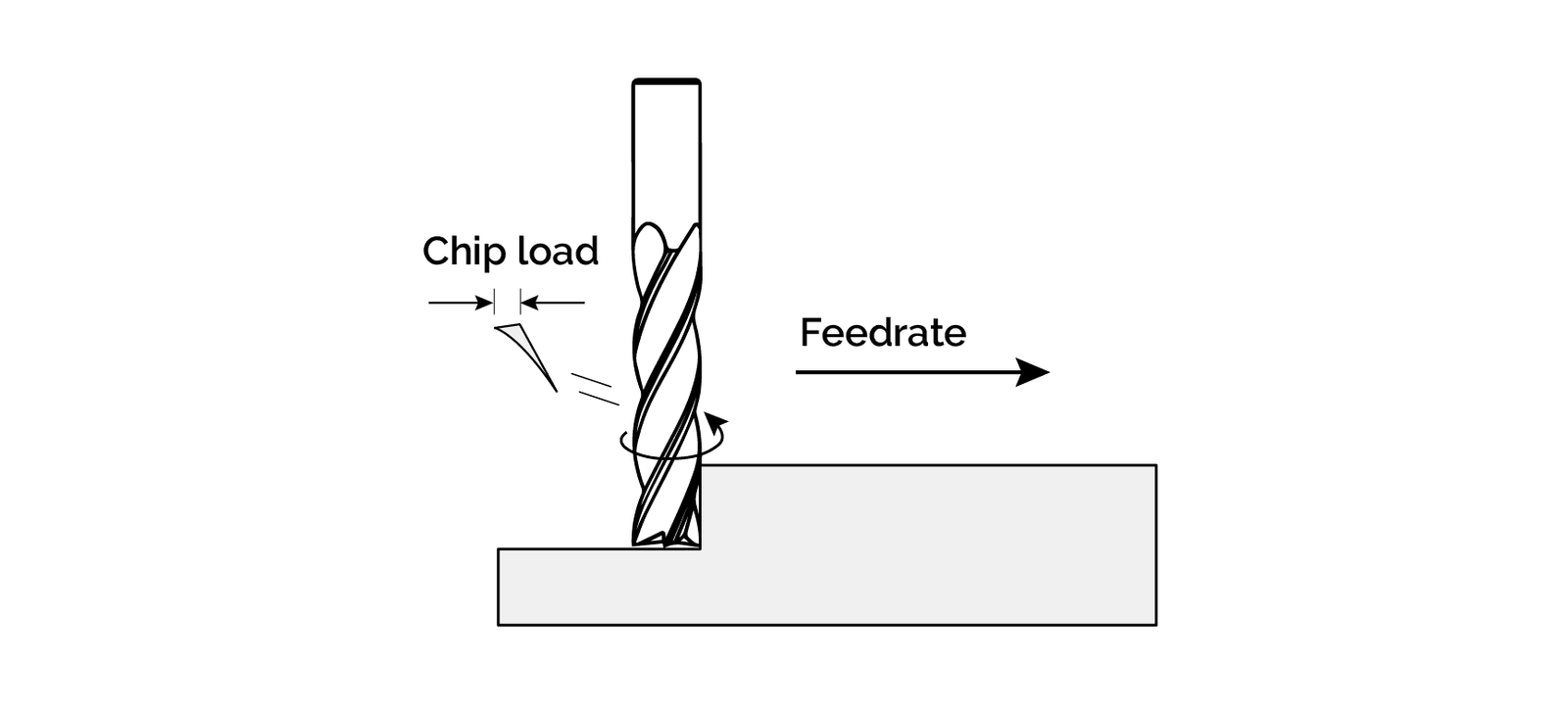

Chip load refers to the amount of material removed by each cutting edge during a single pass. This metric is important because it influences the efficiency of material removal and tool wear. If the chip load is too low, the tool will rub rather than cut, leading to excessive heat and dulling. If it’s too high, the tool can break under the stress of cutting too much material at once.
For example, in CNC milled parts for automotive applications, optimizing chip load ensures faster production times without compromising quality.
Tool Diameter | Recommended Chip Load (mm/tooth) |
---|---|
3 mm | 0.05 – 0.1 |
6 mm | 0.1 – 0.2 |
12 mm | 0.2 – 0.4 |
5. Depth of Cut and Width of Cut

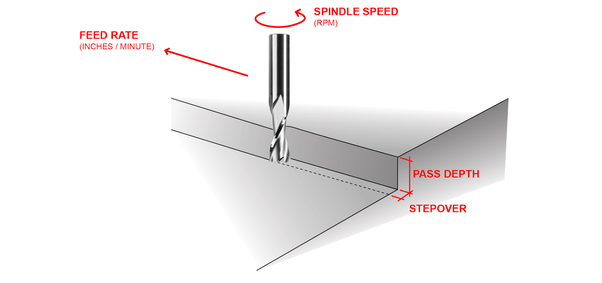

The depth of cut is the distance the tool penetrates into the workpiece, while the width of cut refers to the width of the material removed during each pass. Both parameters affect cutting forces, tool deflection, and material removal rates. For deeper or wider cuts, reducing feed rate or cutting speed may be necessary to prevent tool breakage or deflection.
At CNCRUSH, we adjust depth and width of cut depending on the complexity of the CNC turned parts and the specific requirements of the industry, such as machine building.
6. Tool Material and Geometry

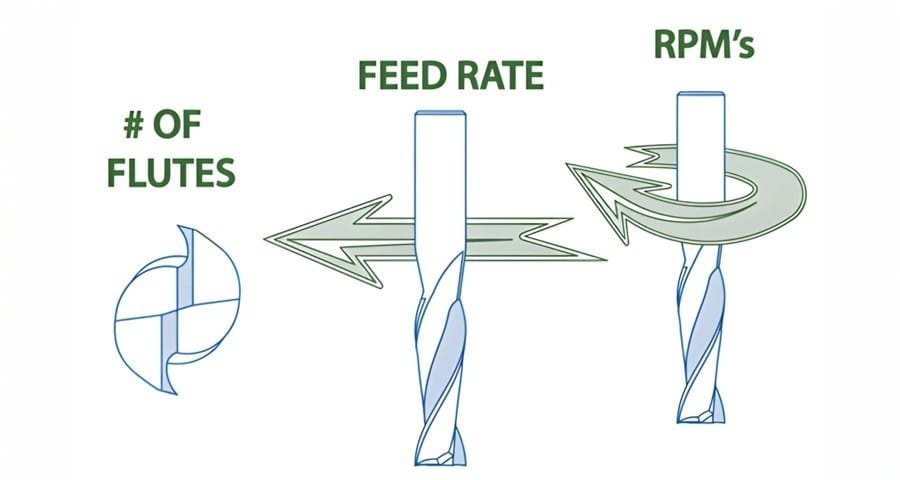

Tool material and geometry have a significant impact on cutting speeds and feeds. Carbide tools, for instance, can handle higher speeds and feeds compared to high-speed steel (HSS), especially when cutting harder materials like steel. Additionally, tools with more flutes offer better material removal rates but may require adjustments to cutting speed to avoid overheating.
For automotive applications, where precision is key, using the right tool geometry ensures that CNC milled parts are produced efficiently and with high accuracy.
7. Coolant and Lubrication
Proper coolant usage is essential for managing heat generated during the cutting process. Excessive heat can soften both the workpiece and tool, reducing tool life and surface finish quality. Flood cooling or minimum quantity lubrication (MQL) is often used to dissipate heat and remove chips from the cutting zone.
8. Troubleshooting Speeds and Feeds Issues
Common problems in CNC machining, such as tool breakage, poor surface finish, or excessive tool wear, often stem from incorrect speeds and feeds. Troubleshooting involves analyzing factors like:
- Chatter: Vibrations caused by too high a cutting speed or too low a feed rate.
- Burning: Overheating due to insufficient feed rate or excessive cutting speed.
- Tool deflection: Occurs when feed rate or depth of cut is too aggressive for the tool being used.
Addressing these issues improves productivity and quality, ensuring that CNC turned parts for sectors like automation meet industry standards.
9. CNC Cutting Speeds and Feeds for Different Materials
Different materials require specific cutting speeds and feeds. For instance, cutting aluminum at high speeds is feasible due to its softness, but steel needs lower speeds to avoid tool wear.
Material | CNC Cutting Speeds (m/min) | Feed Rate (mm/rev) |
---|---|---|
Aluminum | 150-300 | 0.1-0.3 |
Steel | 30-50 | 0.05-0.15 |
Plastics | 100-200 | 0.2-0.5 |
At CNCRUSH, we adjust these parameters based on the material and project needs, ensuring optimal performance in every job.
10. Conclusion: Why CNC Cutting Speeds and Feeds Matter
Mastering the intricacies of CNC cutting speeds and feeds is essential for producing high-quality CNC milled parts and CNC turned parts across various industries, including automotive, machine building, and automation. At CNCRUSH, we take pride in our 12 years of experience, ensuring that each project benefits from precise, optimized machining operations.
Whether you need custom CNC machining services or advice on optimizing speeds and feeds for your specific project, CNCRUSH offers world-class solutions for businesses looking to achieve high efficiency and quality in their production processes.
FAQ Section
Q1: How do I know if my cutting speed is too high?
If you notice excessive tool wear or burning on the material, your cutting speed may be too high. Lowering the RPM can help.
Q2: Can I increase the feed rate without changing the CNC Cutting Speeds?
Yes, but you need to ensure that the chip load remains within recommended values. If the feed rate is increased significantly, cutting forces may increase, leading to tool deflection.
Q3: What role does tool geometry play in optimizing speeds and feeds?
Tool geometry, such as the number of flutes or cutting edges, affects chip evacuation, cutting forces, and tool life. Selecting the right tool geometry for the material and operation is crucial for optimal performance.
