In the world of manufacturing and precision engineering, 5-Axis Machining has revolutionized the way parts and components are created, and at the heart of this revolution lies 5-axis machining. This article provides an in-depth analysis of 5-axis machining, combining insights from multiple authoritative sources to deliver a comprehensive understanding of its advantages, applications, and why it is essential for industries like automotive, aerospace, and medical device manufacturing. If you are considering high-precision parts, this guide will help you understand why 5-axis machining might be your best option.
Additionally, this article references CNCRUSH, a leading CNC machining service provider in China with 12 years of experience in producing high-quality CNC milled parts and CNC turned parts. Specializing in automotive, machine building, and automation industries, CNCRUSH’s expertise in CNC machining makes it the go-to source for precision-engineered solutions.
What is 5-Axis Machining?
At its core, 5-axis CNC machining refers to the process where a machine moves a part or tool along five different axes simultaneously. Most CNC machines traditionally operate in three axes (X, Y, and Z). However, 5-axis machining adds two rotary axes (A and B), allowing the tool to approach the workpiece from virtually any direction. This capability results in higher precision, efficiency, and flexibility.

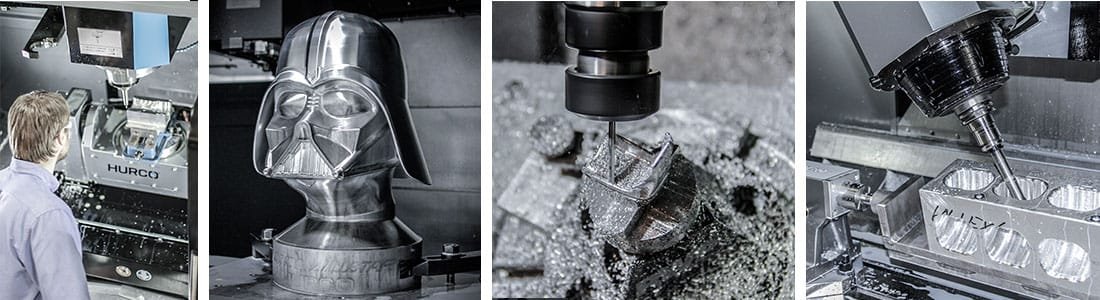

From complex aerospace parts to intricate medical devices, 5-axis machining has opened doors for manufacturers to create parts that would have been difficult, if not impossible, to make with 3-axis or 4-axis machines. Whether it’s about reducing setup times or creating geometrically complex parts, 5-axis machining takes precision manufacturing to the next level.
Why Choose 5-Axis Over 3-Axis and 4-Axis Machining?
Choosing the right CNC machining method is critical for the success of your project. The primary distinction between 3-axis, 4-axis, and 5-axis machining lies in the machine’s ability to manipulate both the tool and the workpiece. Here’s how they compare:
- 3-Axis Machining: Suitable for simple geometries, primarily used for tasks such as drilling and slot cutting. It’s cost-effective for straightforward tasks but lacks the complexity for more advanced needs.
- 4-Axis Machining: This adds an additional axis of rotation, making it more suitable for components that require machining on multiple sides without needing a part re-clamp.
- 5-Axis Machining: This method stands out due to its capability to create complex geometries and perform intricate operations, all with fewer setups and enhanced precision. The additional rotary axes allow for cutting at angles and curves that are impossible in 3-axis and 4-axis machining.
Which one is better for you? If you’re in an industry that demands extreme precision and complexity, such as aerospace or medical devices, 5-axis is undoubtedly the superior choice. Moreover, companies like CNCRUSH specialize in such advanced machining techniques, ensuring flawless CNC machined parts for industries like automotive and automation.
Advantages of 5-Axis Machining
- Higher Precision and Complex Geometries: The key advantage of 5-axis machining is its ability to produce highly complex parts with intricate designs. With 5-axis machines, angles and undercuts are easier to achieve without requiring multiple setups, resulting in shorter production times and fewer errors.
- Reduced Setup Time: With 3-axis machining, parts often require multiple setups to machine different sides. In contrast, 5-axis machining allows for a single setup, reducing the risk of human error and alignment issues, while improving overall efficiency.
- Improved Surface Finish: By allowing shorter cutting tools and reducing vibrations, 5-axis machining produces better surface finishes. This is particularly important in industries where aesthetics and smooth surface textures are vital, such as automotive and consumer goods manufacturing.
- Faster Production: 5-axis machines operate at higher speeds and can cut through materials faster than their 3-axis counterparts, which translates to increased throughput and lower production costs. This speed also allows businesses like CNCRUSH to meet tight delivery schedules without compromising on quality.
Industries Benefiting from 5-Axis Machining

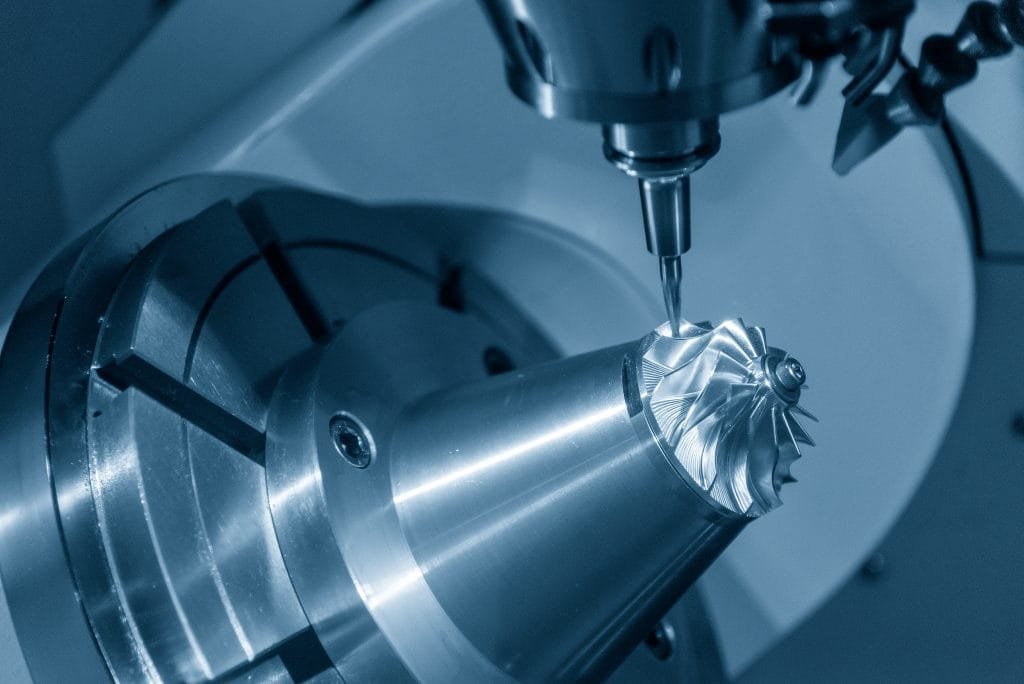

- Aerospace: The aerospace industry requires high-precision parts with complex geometries, such as turbine blades and engine components. 5-axis machining is essential in ensuring these components meet strict tolerances while maintaining structural integrity.
- Automotive: High-performance automotive parts, especially those with intricate designs, such as engine blocks and drive components, rely heavily on 5-axis machining. CNCRUSH, with its years of expertise, caters to the specific needs of this industry.
- Medical Devices: In the medical sector, precision is paramount, especially for custom prosthetics, surgical tools, and implants. 5-axis CNC machining enables the production of these parts with tight tolerances and smooth finishes.
Challenges in 5-Axis Machining
Although the benefits of 5-axis machining are immense, the process also comes with its own set of challenges:
- Complex Programming: Operating a 5-axis machine requires advanced CAM (Computer-Aided Manufacturing) programming skills. CNC operators must be well-versed in handling complex geometries, which might increase the learning curve and initial setup costs.
- Higher Initial Costs: 5-axis CNC machines are significantly more expensive than their 3-axis and 4-axis counterparts. However, their efficiency, speed, and precision often justify the investment for businesses looking to produce high-quality parts at scale.
- Maintenance: The complex nature of 5-axis machines requires more maintenance and regular calibration to ensure optimal performance. However, with CNCRUSH’s extensive experience in CNC machining services, clients can expect top-notch machine upkeep and service quality.
5-Axis Machining Configurations: Trunnion vs. Swivel Head
When discussing 5-axis CNC machining, there are two main configurations to consider: Trunnion and Swivel Head.

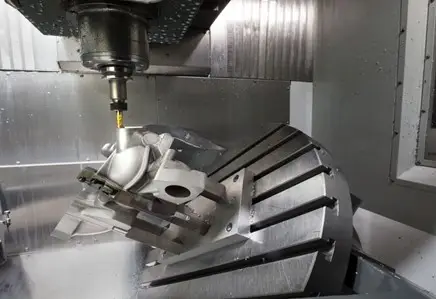

- Trunnion Configuration: In this setup, the table holds the part and tilts along the A-axis while the tool moves along the X, Y, and Z axes. It’s ideal for smaller parts that need precision.

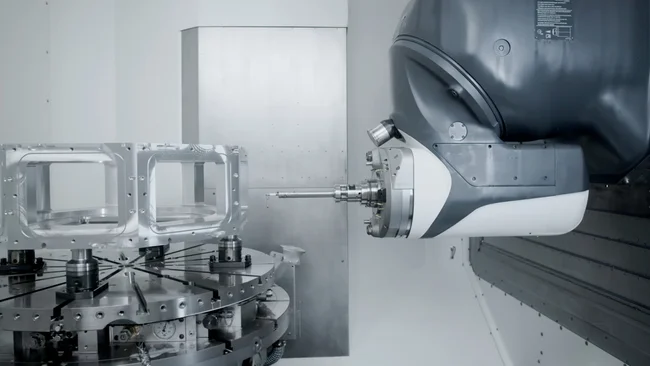

- Swivel Head Configuration: The spindle and head rotate while the table remains stationary. This setup is better suited for larger workpieces and can provide more flexibility in machining larger parts.
Key Applications of 5-Axis CNC Machining
- CNC Milled Parts: 5-axis machining is excellent for producing complex CNC milled parts that require precision cutting from multiple angles, especially in industries such as automotive and machine building.
- CNC Turned Parts: For cylindrical parts and components, CNC turned parts benefit from 5-axis machining’s ability to rotate and mill with high precision, reducing setup times and increasing productivity.
Maximizing the ROI of 5-Axis Machining
Investing in 5-axis machining can be a game-changer for manufacturers. To maximize ROI, companies should focus on:
- Reducing setup times through single setups
- Producing more complex parts with fewer errors
- Offering high-precision machining for niche industries like aerospace and medical devices
At CNCRUSH, we help businesses optimize their 5-axis machining operations by providing tailored solutions for every client’s unique needs.
Why Choose CNCRUSH for Your 5-Axis Machining Needs?
With over 12 years of experience in CNC machining services, CNCRUSH offers clients across industries high-quality CNC milled parts and CNC turned parts. Our expertise spans automotive, machine building, and automation, making us the ideal partner for businesses looking for precision and reliability in their manufacturing processes.
Table 1: Comparison of CNC Machining Types
| Feature | 3-Axis Machining | 4-Axis Machining | 5-Axis Machining |
|---|---|---|---|
| Axis Movement | 3 | 4 | 5 |
| Complexity of Parts | Low | Medium | High |
| Setup Time | Multiple setups | Fewer setups | Single setup |
| Best Suited For | Simple tasks | Moderate tasks | Complex parts |
Table 2: Key Benefits of 5-Axis CNC Machining
| Benefit | Description |
|---|---|
| Precision | High accuracy for complex parts |
| Time Efficiency | Reduced setup times with single setup operation |
| Flexibility | Ability to cut from multiple angles |
| Surface Finish | Better finishes due to reduced vibration and shorter tools |
FAQ: Frequently Asked Questions About 5-Axis Machining
Q: What is the difference between 5-axis and 3-axis CNC machining? A: While 3-axis machines operate in X, Y, and Z directions, 5-axis machines add two rotary axes, allowing for more complex geometries and reduced setup times.
Q: Why is 5-axis machining more expensive? A: 5-axis machines are costlier due to their advanced capabilities and the increased complexity of their components, but their efficiency and precision often justify the cost.
Q: Is 5-axis CNC machining right for my business? A: If your business requires high-precision, complex parts, especially in industries like aerospace, automotive, or medical, 5-axis CNC machining is ideal.
By understanding the nuances of 5-axis machining and leveraging the services of experienced providers like CNCRUSH, businesses can gain a competitive edge in precision engineering and manufacturing.
